MEDI GLOBAL ASSISTIVE DEVICE CO., LTD

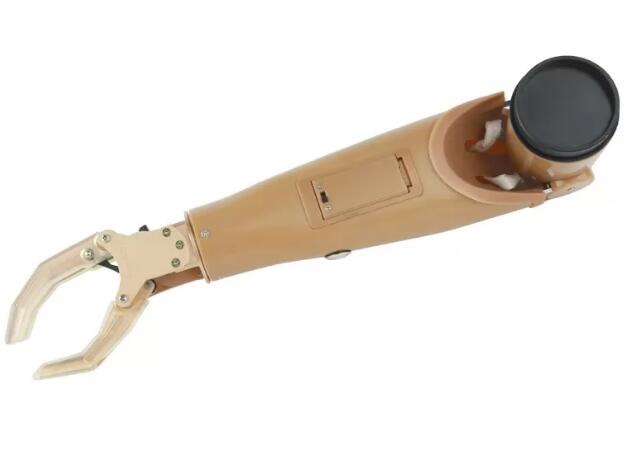

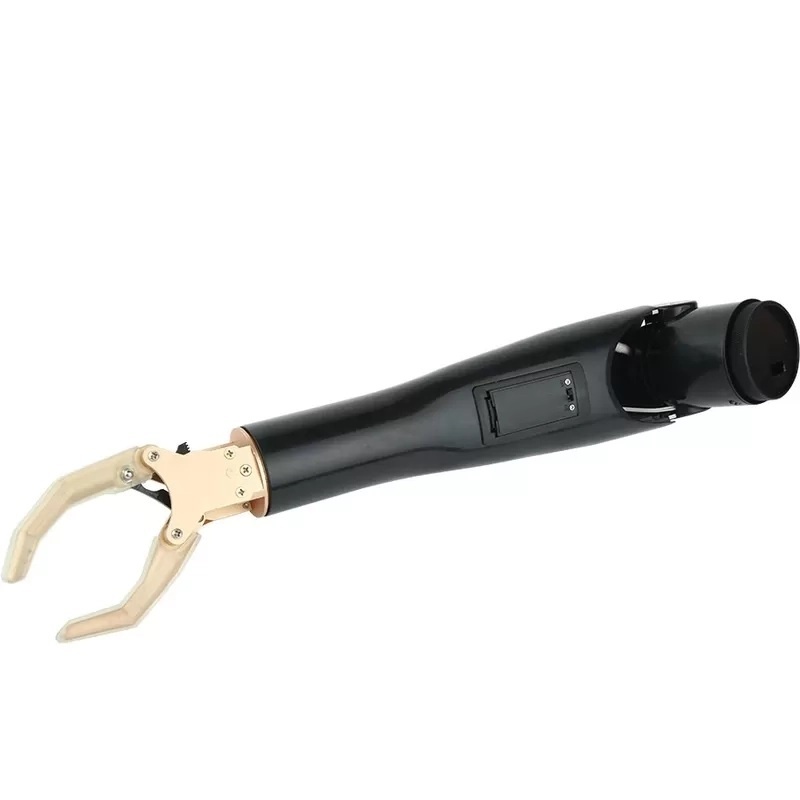

Above Elbow Myoelectric Hand System with Three fingers (Two-Motion Freedom)




Technical Parameters：

Hand weight: 900g
Battery capacity: 750mAh
The maximum open distance:110mm
Opening and closing speed:130mm
Grip force: maximum 60N
Power supply: 7.4V
Multi-mode (four operating systems)
Elbow separation (forearm thumb tip to elbow joint cover screw)
S 27.3cm-33.8cm M 27.9cm-34.4cm


Product Function:

Fingers can open and grasp.
Wrist can be passively rotated with friction.
Elbow can extend and flex by electrical control.
Suitable for Above Elbow amputation.

Attached Accessories:

Including: a pair of sensors or electric switches, two pcs of sensor modules or electric switch modules, two batteries, one battery box, one battery box module, one battery charger adapter, one charger base, one silicone glove, one myoelectric hand skeleton, Product Qualification Certificate, Prosthetic Product Warranty Card, Product Quality Tracking Card, Operating Manual of Myoelectric Hand.
